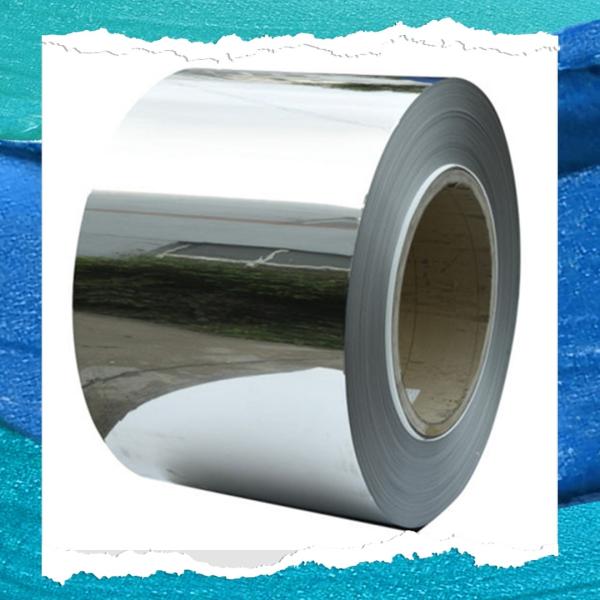

BA Finish Stainless Steel Coil ASTM AISI 430 With PVC Film Cold
Rolled 2MM
Product: Cold Rolled Stainless Steel Coil
Steel Grade: 430
Surface: BA
Thickness: 0.5MM, 0.8MM, 1MM, 1.2MM, 1.5MM, 2MM, 2.5MM, 3MM
Width: 1219MM / 4" , 1000MM , 1250MM
Standard: ASTM, AISI, JIS, EN
Delivery Time: 3-7 days. Large in stock.
MTC is available
Third-party test is acceptable
Payment terms: T/T, L/C
Service: laser cut, cut to strips, PVC film, HL Mirror surface
treatment. Try our best to meet your requirements.
Available thickness: 0.1-3MM
Welcome to inquire!
| Material Type | Austenitic stainless steel, Ferrite stainless steel, Duplex stainless steel |
| Material Origin | TISCO, BAOSTEEL, JISCO, LISCO |
| Grade | 201, 304, 304L, 316, 316L, 410, 420, 310S, 409L, 904L, 631, 2205,
2507 |
| Standard | GB, ASTM, JIS, SUS, AISI, EN, DIN |
| Technology | Cold Rolled |
| Thickness | 0.1mm to 3mm |
| Width | 10mm to 1500mm |
| Surface | 2B, 2D, BA, NO.4, HL, SB or as required |
| Edge | Slit / Trim Edge |
| Other Service | Leveling: improve flatness, esp. for items with high flatness
request. |
| Skin-Pass: improve flatness, higher brightness |
| Protection | 1. Inter paper available |
| 2. PVC protecting film available |
| The sizes or thicknesses of stainless steel coil can be customized.
If you need additional information, please don’t hesitate to
contact us at any time. |
| All standard products are supplied without inter paper & film. If
needed, please inform. |
| Chemical Properties of Frequently-used Stainless Steel Material
Grade |
| UNS | ASTM | EN | JIS | C% | Mn% | P% | S% | Si% | Cr% | Ni% | Mo% |
| S20100 | 201 | 1.4372 | SUS201 | ≤0.15 | 5.5-7.5 | ≤0.06 | ≤0.03 | ≤1.00 | 16.0-18.0 | 3.5-5.5 | - |
| S20200 | 202 | 1.4373 | SUS202 | ≤0.15 | 7.5-10.0 | ≤0.06 | ≤0.03 | ≤1.00 | 17.0-19.0 | 4.0-6.0 | - |
| S30100 | 301 | 1.4319 | SUS301 | ≤0.15 | ≤2.00 | ≤0.045 | ≤0.03 | ≤1.00 | 16.0-18.0 | 6.0-8.0 | - |
| S30400 | 304 | 1.4301 | SUS304 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 18.0-20.0 | 8.0-10.5 | - |
| S30403 | 304L | 1.4306 | SUS304L | ≤0.03 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 18.0-20.0 | 8.0-12.0 | - |
| S30908 | 309S | 1.4833 | SUS309S | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 22.0-24.0 | 12.0-15.0 | - |
| S31008 | 310S | 1.4845 | SUS310S | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤1.50 | 24.0-26.0 | 19.0-22.0 | - |
| S31600 | 316 | 1.4401 | SUS316 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| S31603 | 316L | 1.4404 | SUS316L | ≤0.03 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| S31703 | 317L | 1.4438 | SUS317L | ≤0.03 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 18.0-20.0 | 11.0-15.0 | 3.0-4.0 |
| S32100 | 321 | 1.4541 | SUS321 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 17.0-19.0 | 9.0-12.0 | - |
| S34700 | 347 | 1.4550 | SUS347 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 17.0-19.0 | 9.0-13.0 | - |
| S40500 | 405 | 1.4002 | SUS405 | ≤0.08 | ≤1.00 | ≤0.04 | ≤0.03 | ≤1.00 | 11.5-14.5 | ≤0.60 | - |
| S40900 | 409 | 1.4512 | SUS409 | ≤0.08 | ≤1.00 | ≤0.045 | ≤0.03 | ≤1.00 | 10.5-11.75 | ≤0.50 | - |
| S43000 | 430 | 1.4016 | SUS430 | ≤0.12 | ≤1.00 | ≤0.040 | ≤0.03 | ≤0.75 | 16.0-18.0 | ≤0.60 | - |
| S43400 | 434 | 1.4113 | SUS434 | ≤0.12 | ≤1.00 | ≤0.040 | ≤0.03 | ≤1.00 | 16.0-18.0 | - | - |
| S44400 | 444 | 1.4521 | SUS444L | ≤0.025 | ≤1.00 | ≤0.045 | ≤0.03 | ≤1.00 | 17.5-19.5 | ≤1.00 | - |
| S40300 | 403 | - | SUS403 | ≤0.15 | 5.5-7.5 | ≤0.04 | ≤0.03 | ≤0.50 | 11.5-13.0 | ≤0.60 | - |
| S410000 | 410 | 1.40006 | SUS410 | ≤0.15 | ≤1.00 | ≤0.035 | ≤0.03 | ≤1.00 | 11.5-13.5 | ≤0.60 | ≤1.00 |
| S42000 | 420 | 1.4021 | SUS420J1 | 0.16~0.25 | ≤1.00 | ≤0.04 | ≤0.03 | ≤1.00 | 12.0-14.0 | ≤0.75 | ≤1.00 |
| S440A | 440A | 1.4028 | SUS440A | 0.60~0.75 | ≤1.00 | ≤0.04 | ≤0.03 | ≤1.00 | 16.0-18.0 | - | ≤0.75 |
| S32750 | SAD2507 | 1.4410 | | ≤0.03 | ≤1.2 | ≤0.035 | ≤0.02 | ≤0.80 | 24.0-26.0 | 6.0-8.0 | 3.0-5.0 |
| S31803 | SAF2205 | 1.4462 | | ≤0.03 | ≤2.0 | ≤0.03 | ≤0.02 | ≤1.00 | 21.0-23.0 | 4.0-6.5 | 2.5-3.5 |
| N08904 | 904L | 1.4539 | | ≤0.0.3 | ≤2.0 | ≤0.035 | ≤0.03 | ≤1.00 | 18.0-20.0 | 23.0-25.0 | 3.0-4.0 |
430 Stainless Steel is known to have moderate ductility limited
forming, bending and welding characteristics and can be drawn to a
moderate degree.
This alloy is highly magnetic, resistant to scaling at 1500°F and
has better resistance to dry sulphur-bearing gases than the
chromium-nickel stainless type.
Uses for 430 Stainless Steel include automotive & appliance trim
and accessories, builder’s hardware, display cases, fasteners,
interior architectural trim and paneling, combustion chambers and
chimney liners and sinks, drains and trays.
