    200 Series 201 Stainless Steel Pipe Welded Tubes SS Square Rectangular 2500mm

    Ask Lasest Price
    Brand Name : TISCO, JISCO, BAO
    Model Number : 201
    Price : USD 1500-3000 / MT
    Payment Terms : L/C, T/T
    Supply Ability : 25000MT PER YEAR
    Delivery Time : 7-25 WORKING DAYS
    • Product Details
    • Company Profile

    200 Series 201 Stainless Steel Pipe Welded Tubes SS Square Rectangular 2500mm

    201 Stainless Steel Pipe 200 Series Welded Tubes SS Square Rectangular Tubing

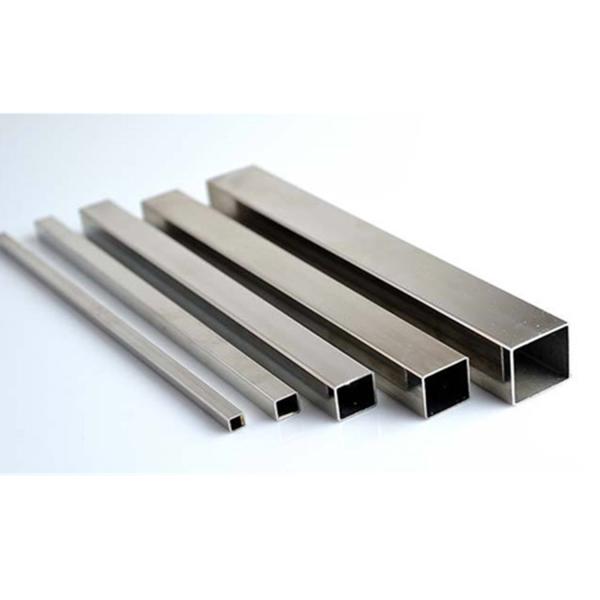

    Stainless steel square tube is a kind of hollow long steel. Because the section is square, it is called square tube. The big star is used as a pipeline to deliver fluids, such as oil, natural gas, water and gas In addition, when the bending and torsional strength are the same, the heavy star is light, so it is also widely used to manufacture mechanical parts and engineering structures.


    Stainless Steel Decorative Welded Pipe/Tube Production Process.

    Stainless Steel Industrial Welded Pipe/Tube Production Process.


    Item201 Stainless Steel Pipe 200 Series Welded Tubes SS Square Rectangular Tubing
    Steel grade200 series, 300 series, 400 series, 316 series, 904, etc
    StandardASTM A213, A312, ASTM A269, ASTM A778, ASTM A789, DIN17456, DIN17457 ,DIN17459, JIS G3459, JIS G3463, GOST9941, EN10216, BS3605, GB13296
    Material304/L, 309S, 310S, 316/L, 317, 317L, 321, 347, 347H, 201, 410, 430, 420
    SurfacePolishing, annealing, pickling, bright
    Typehot rolled and cold rolled
    stainless steel round pipe/tube
    SizeWall thickness1mm-150mm(SCH10-XXS)
    Outer diameter6mm-2500mm (3/8"-100")
    stainless steel square pipe/tube
    SizeWall thickness1mm-150mm(SCH10-XXS)
    Outer diameter4mm*4mm-800mm*800mm
    stainless steel rectangular pipe/tube
    SizeWall thickness1mm-150mm(SCH10-XXS)
    Outer diameter6mm-2500mm (3/8"-100")
    Length4000mm, 5800mm, 6000mm, 12000mm, or as required.
    Trade termsPrice termsFOB, CIF, CFR, CNF, Ex-work
    Payment termsT/T, L/C,
    Delivery timePrompt delivery or as the order quantity.
    Export to

    Ireland, Singapore, Indonesia, Ukraine, Saudi Arabia, Spain, Canada, USA, Brazil, Thailand,

    Korea, Italy, India, Egypt, Oman, Malaysia, Kuwait, Canada,

    Viet Nam, Peru, Mexico, Dubai, Russia, etc

    PackageStandard export seaworthy package, or as required.
    Application

    Widely used in petroleum, foodstuff, chemical industry, construction, electric power, nuclear, energy, machinery, biotechnology, paper making, shipbuilding, boiler fields.

    Pipes also can be made according to the customer's required.

    Container size

    20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM

    40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM

    40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM


    Available Specification

    Product NameExecutive StandardDimensionSteel Code / Steel Grade
    Industrial PipesASTM A312, A358, A778
    JIS G3459
    OD: 1/4"~40"
    WT: SCH5S~SCH80S
    TP304, TP304L, TP316L, SUS304TP
    Tubes for Boiler and Heat-Exchanger, General Service TubingASTM A249, A269, JIS G3463OD: 15.9~139.8mm
    WT: 1.6~5.0mm
    TP304, TP304L, TP316L, SUS304TB
    Mechanical and Structural TubesASTM A554, JIS G3446OD: 7.9~152.4mm
    WT: 0.5~6.5mm
    MT304, MT304L, MT316L, MT430 Grade 201, 202 as per mill's STD SUS304
    Square TubesASTM A554OD: 12.7x12.7~150x150mm
    WT: 0.7~6.5mm
    MT304, MT304L, MT316L, MT430 Grade 201, 202 as per mill's STD
    Rectangular TubesASTM A554OD: 10x20~100x200mm
    WT: 0.7~6.5mm
    MT304, MT304L, MT316L, MT430 Grade 201, 202 as per mill's STD
    Sanitary TubingASTM A270
    JIS G3447
    OD: 25.4~165.2mm
    WT: 0.8~3.05mm
    TP304, TP304L, TP316L, SUS304TBS
    Large Gauge Pipes for Ordinary PipingJIS G3448OD: 15.88~318.5mm
    WT: 0.8~3.0mm
    SUS304TPD
    Large Diameter PipesJIS G3468OD: 14"~40"
    WT: SCH5S~SCH40S
    SUS304TPY

    AISI/ASTM 304 Seamless Stainless Steel Round Pipes For Industry 1


    AISI/ASTM 304 Seamless Stainless Steel Round Pipes For Industry 2



    304 Cold Rolled Stainless Steel Coil 2B Surface 0.1-3mm Thickness 3
    1. How can I get a quotation from you?
    You can leave us message or send us a email and we will reply every message in time.

    Or we may talk on line by skype & wechat.
    And you can also find our contact information on contact page.
    2. Can I get samples before order?
    Yes, of course. Can send you small piece for you to check quality.
    3. What is your delivery time?
    A. The time of delivery is usually around 7-25 days according to the products you need.
    4. What is your payment terms?
    Our usual payment term is 30% deposite, and rest against B/L.

    L/C is also acceptatble .
    5. How can you garantee what I got will be good?
    First of all, the material origin in TISCO, JISCO, etc and we can offer MTC from the steel mill.

    Also, we accept third-party test.
    6. How do you make our business long-term and good relationship?
    A. We keep good quality and competitive price to ensure our customers benefit ;
    B. We respect every customer as our friend and we sincerely do business and make friends with them no matter where they come from


    Looking for ideal Stainless Steel Pipe Tube supplier ? We have a wide selection at good prices to help you get creative. All the SS pipes are quality guaranteed. We are China Origin Factory of Customized SS tube. If you have any question, please feel free to contact us.
